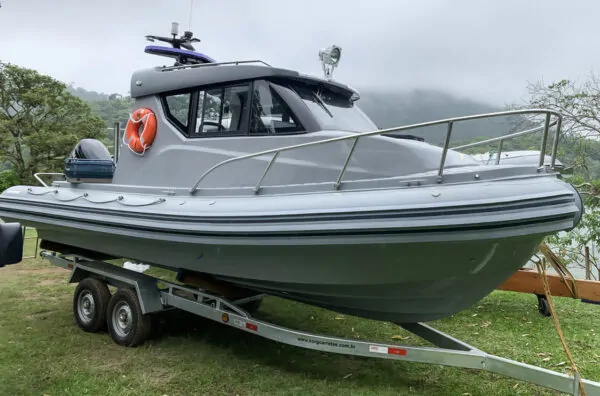

2022 Flex 680 Cabin Explorer with Mechanical Outboard Engine | Grey w/ Black Accents

The FLEX-680 Cabin combines innovative design and revolutionary technical characteristics to bring the comfort of a cabin to the safety and practicality of an inflatable boat to our Ventura and Bay Area locations. The FLEX-680 Cabin is built on years of research, in countries all around the world. The results of this research combine with highly specialized equipment and attention to each detail of the boat to produce robust and durable Flexboats.

Boat Specifications

• Beam: 9’ 2”
• Inside Beam: 5’ 7”
• Cabin Ceiling Height: 6’ 7”
• Head Ceiling Height: 4’ 11”
• Weight: 3450 lbs
• Capacity: 7 Passengers
• Max HP: 300 HP
• Recommended HP: 225 HP
• Tube Diameter: 16” Bow / 20” Stern
• Air Chambers: 7 (Independent)
• Fuel Tank: 80 Gallons
• Fresh Water Capacity: 21 Gallons
• Tube Material: Orca (Hypalon)

Tube Features:

• Cone shaped tubes (17” at bow and 20” at stern)
• 7 Independent Air Chambers
• Orca (Hypalon) Material with 5 layers
• 2 Vulcanized rubber profiles that act as fenders and spray deflectors
• Tube air valves are imported from Italy and built with injected Nylon, nitrile rubber washers and o-rings, and a stainless steel spring and screw cap

Hull Features:

• Deep ‘V’ hull made of laminated fiberglass polyester resin and reinforced with biaxial woven roving
• Hull thickness is ¼” in the hull and ½” in the keel
• Longitudinal and transverse fiberglass stringers are laminated with triaxial fabric
• Tow ring in the bow and 2 transom tie-down rings are present to secure boat to trailer
• Bow rails on both sides of forward portion of cockpit with (6) 8” cleats (3 per side)
• Fuel fill and freshwater fill located on bow and equipped with draining systems
• 84 Gallon fuel tank with 2 baffles located under cabin floor
• Swim platform with telescopic boarding ladder, fresh water 10 ft shower wand, and 2 lifting rings

Cockpit and Cabin Features:

• Cockpit is laminated with gelcoat and has a non-skid surface
• Portlight for ventilation in cabin ceiling with stainless steel handrails on both sides
• Anchor locker with waterproof lights and accommodates a 15lbs anchor and 330ft of line
• 8” Cleat inside the anchor locker and a dedicated stainless steel mooring ring
• 8mm thick glass windshield with windshield wipers
• Spacious dash space for instrumentation
• Access door to the head
• Double ABS fan offers vertical and horizontal adjustments
• Overhead console incorporates digital clock and thermometer, sunglass compartment, and space for VHF radio
• Captain and companion seats are built with stainless steel structure and a seamless design offering perfect ergonomics while sitting or standing up
• Sofa situated behind the captain seat accommodates 2 people
• Behind companion seat there is a sink with faucet, cutting board, bottle/snack storage, ice bucket, large cooler, and 2 storage drawers
• Head is equipped mirror, sink, electric toilet with macerator, toilet paper holder, trash bin, safety grab handle, electric exhaust fan, shower wand, 4 light fixtures
• Vertical 21 gallon freshwater tank located behind the front bulkhead of the head
• Sliding windows on both sides of cabin
• Swim platform with telescopic boarding ladder, fresh water shower wand, and 2 lifting rings

Includes:

ABS two stage 5 liter air pump, hypalon repair kit, drain plug with safety lanyard, 3 Stainless Steel cup holders, 1,100 GPH/500 GPH automatic bilge pumps, 1 freshwater pump, 1 recessed mount illuminated compass, waterproof switch panel

Motor Specifications

• Engine Type: Yamaha F300XA Four Stroke
• Horsepower: 300 hp
• Cylinders: 6 cyl
• Shaft Length: 25″
• Steering: Remote Mech
• Starter: Electric
• Weight: 551 lbs
• Full Throttle Range: 5000 – 6000 rpm
• Displacement: 4169cc
• Induction System: EFI
• Warranty: 3 years

Standard Features

Power trim & tilt, mechanical throttle & shift, manual

Motor Specifications

• Engine Type: Mercury 300HP Inline 8 Four Stroke
• Horsepower: 300HP
• Cylinders: V-8
• Shaft Length: 25” (X-long)
• Steering: Remote Mech
• Starter: Electric
• Weight: 527 lbs
• Full Throttle Range: 5200-6000
• Displacement: 4.6L
• Trim System: Power Trim & Tilt
• Induction System: EFI
• Warranty: Mercury Marine 3-Year Warranty

Standard Features

Owner’s manual, mounting hardware, & tool kit.
